New/Like New

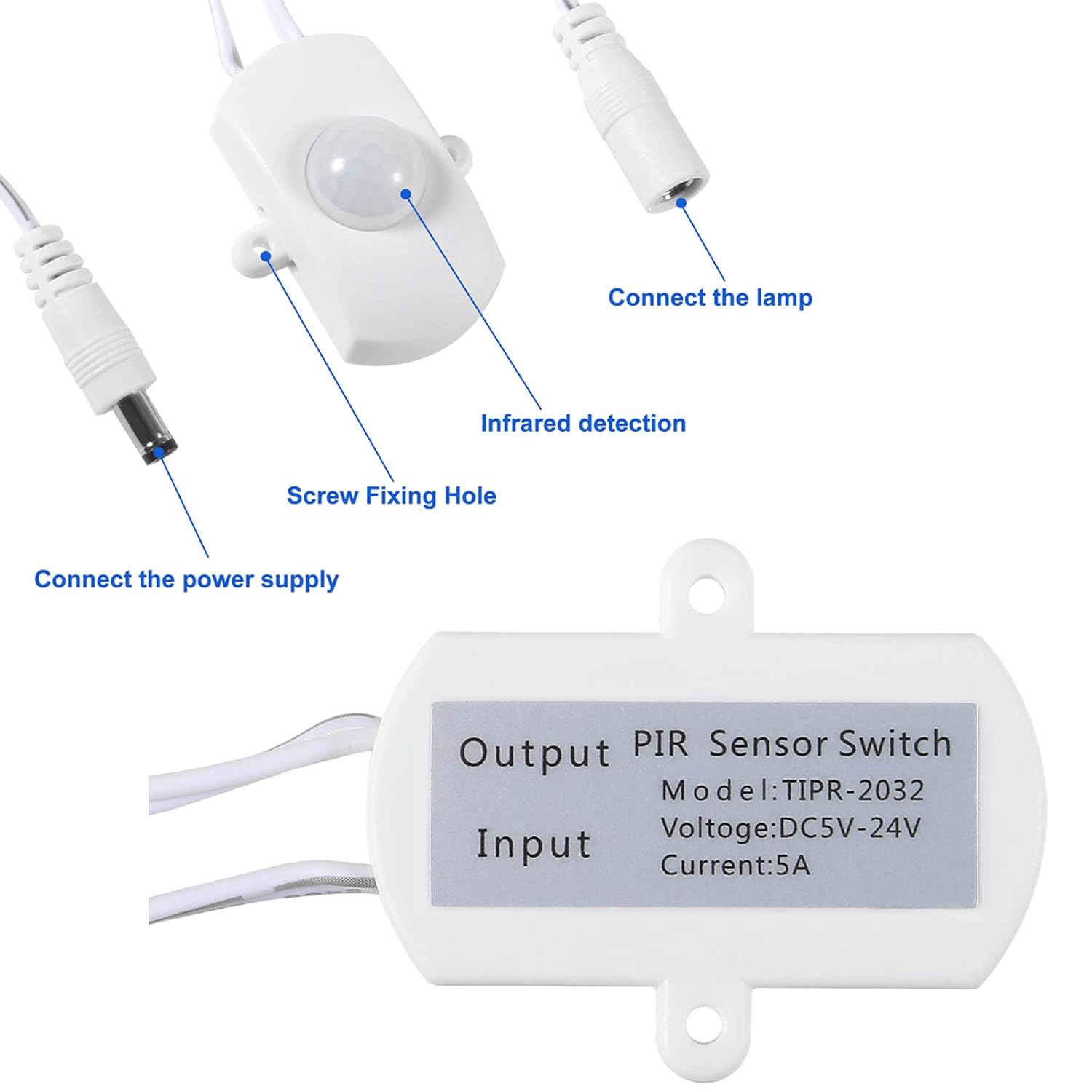

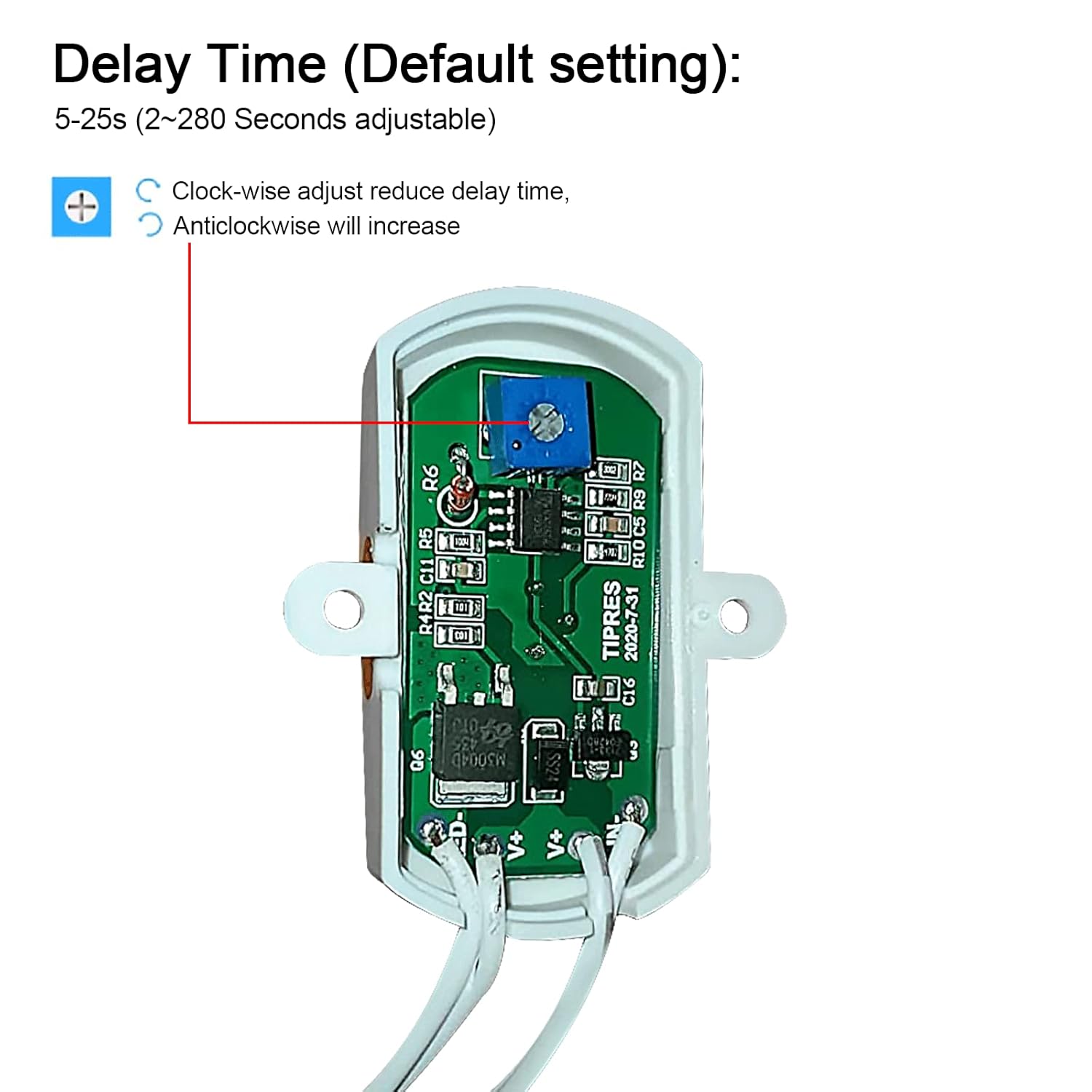

Specification 1.Product Name: Mini Pir Motion Sensor Switch 2.Operating Voltage: DC5V ~ 24V 3.Load Current: 5A 4.Delay Time: 5~10 Seconds, adjustable 5.Detecting Range: 120° 6.Detecting Distance: <8M, adjustable 7.Working Temperature: -15°C~38°C 8.Size: 50 * 26 * 21.5mm / 1.96 * 1.02 * 0.84inch 9.Trigger Way: Continuous triggering 10.Light Sensor: 20LUX 11.Color: White Package Included: 3 x Body Infrared Motion Sensor with DC Coupler Cable 3 × 3M Sticker 6 × Typical Screws Warm Notice: 1.Don't exposed to direct sun light or lighting, big wind, near a heater or air condition 2.Don't fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though 3.Don't fix it in strong shock or vibration environment 4.The PIR Sensor requires a "warm-up time" in order to function properly, about 10s to1min,depend on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready 5.The sensitivity for left-right direction is better than up-down direction, make sure the installation direction is left-right

GRA2497272

New/Like New

109 Triport Road, Georgetown KY 40324

LXT - Auction Pickup Center CAGE - Aisle 02 - Bay
