Delavan Ag Pumps, Inc.

As Is

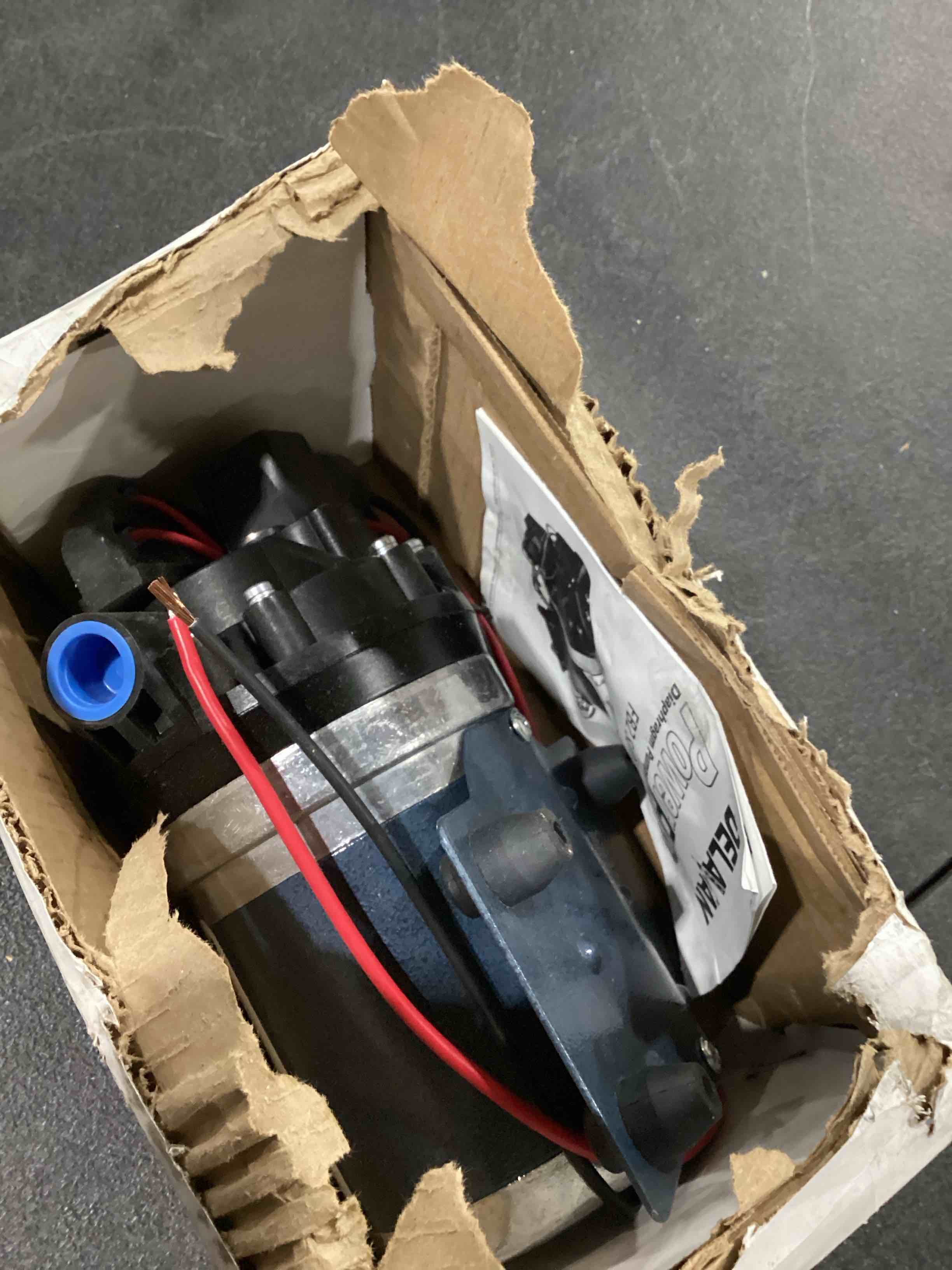

Delavan 7870-101E-SB PowerFLO FB2 Series 7.0 GPM 60 PSI Diaphragm Pump with 1/2 FNPT Ports. Demand Switch Operates only when liquid flow is required. Features: The FB2 pumps are heavy duty 12V, 7 GPM pumps with Santoprene diaphragms and Santoprene valves These FB2 5 chamber pumps are smooth running, and can run dry, and self-prime The pumps feature popular threaded NPTF ports, along with a heavy duty demand system to turn the pump off when not in use, saving pump life and saving energy The FB2 pumps are known for one of the highest flow rates in the 12V market The FB2 pumps are used in difficult applications such as roof cleaning, and de-icing Certified to NSF/ANSI Standard 61 372 Made in the USA 100% Factory tested 2 Year warranty from date of purchase Motor: Type: 12 VDC permanent magnet, totally enclosed, non- ventilated Leads: 12 AWG, 12 long Max Amps (60 PSI): 17 Duty Cycle: See Heat Rise graph Materials of Construction: Motor Shell: Coated Steel Housing: Polypropylene Glass Filled Valves: Santoprene Diaphragm: Santoprene Fasteners: Stainless Steel NSF/ANSI Certified: NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects NSF/ANSI 372 and conforms with the lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Pump: Demand Switch Operates only when liquid flow is required Type: 5-chamber positive displacement Capable of being run dry Excellent self-priming capability Liquid Temperature: 140° F Max. Priming Capabilities: 14 Max. Flow: 7.0 GPM Pressure Shut-Off: 60 PSI Inlet/Outlet Ports: 1/2 FNPT Packaging: Small box Weight: 9.75 lbs

BRN1269556

6.2 inches

5.3 inches

9.9 pounds

10.8 inches

As Is

1301 N Dixieland Road, Rogers AR 72756
