Acogedor

Brand New

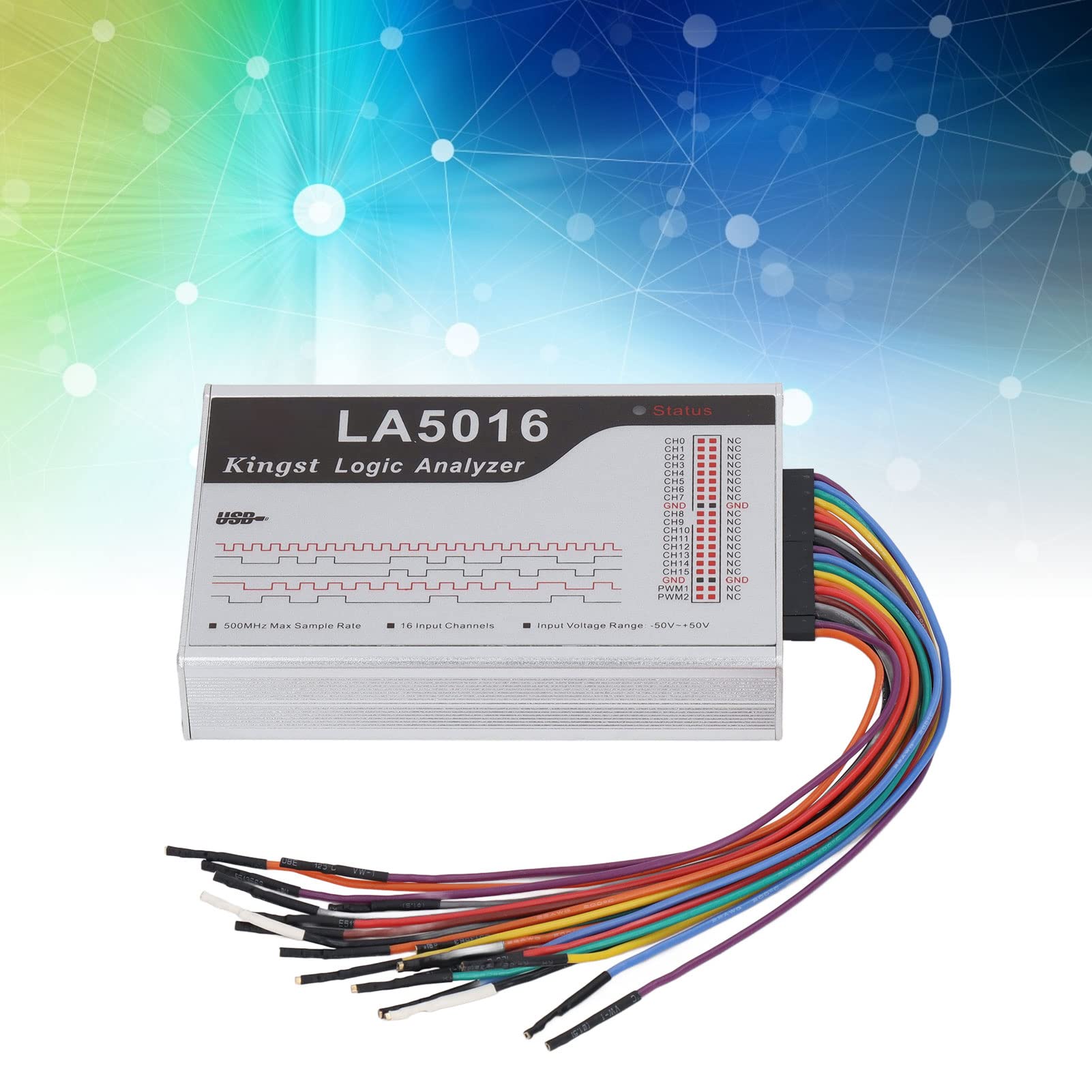

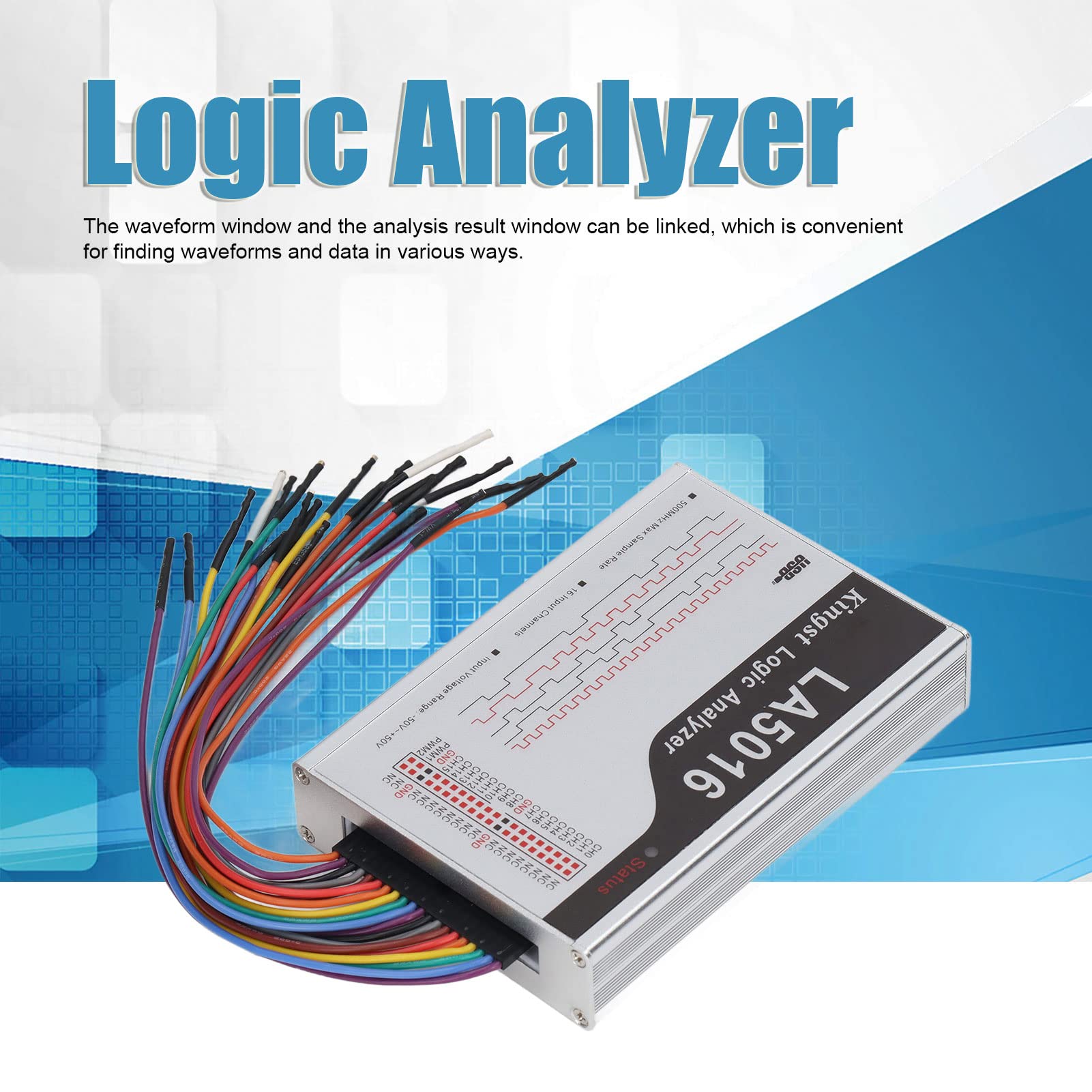

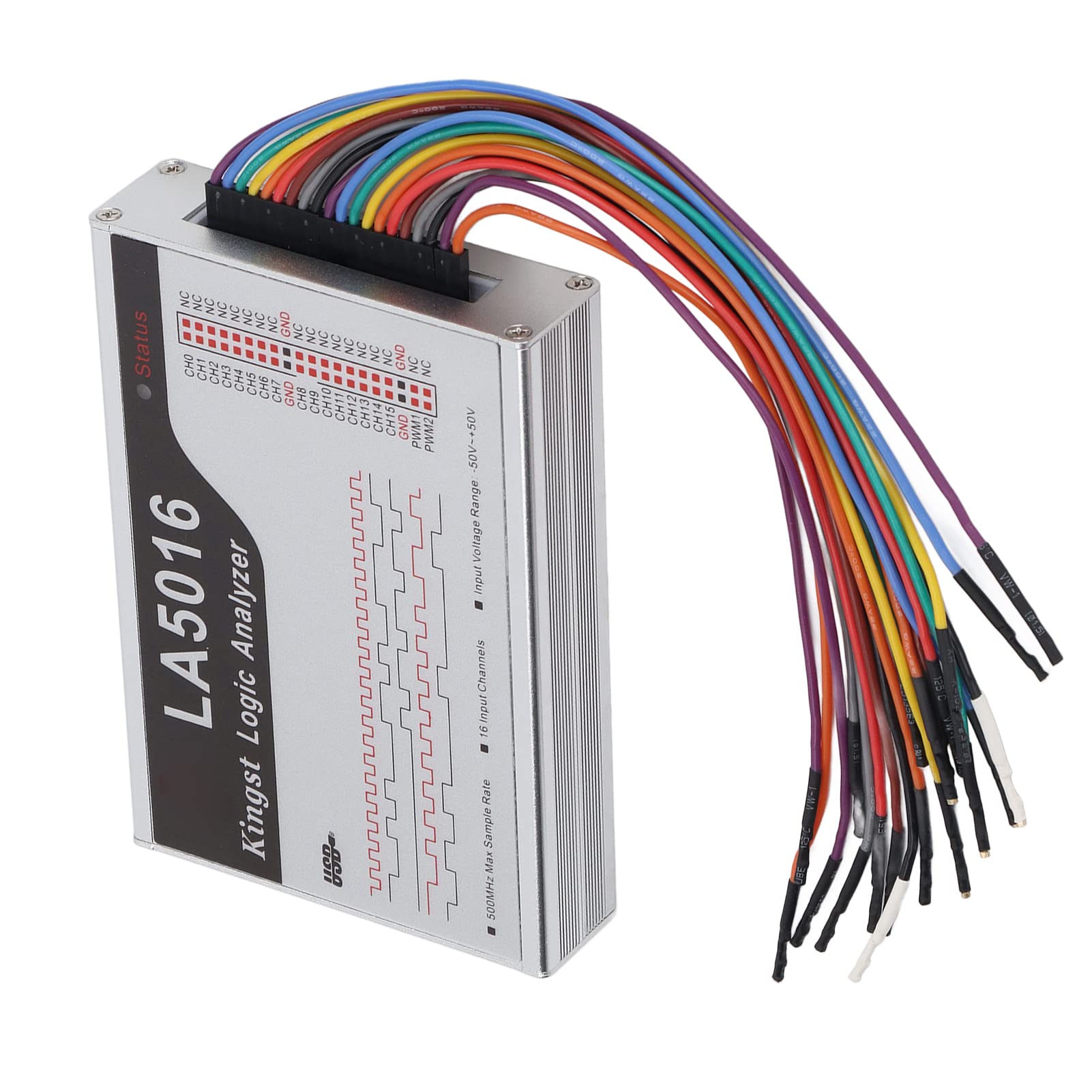

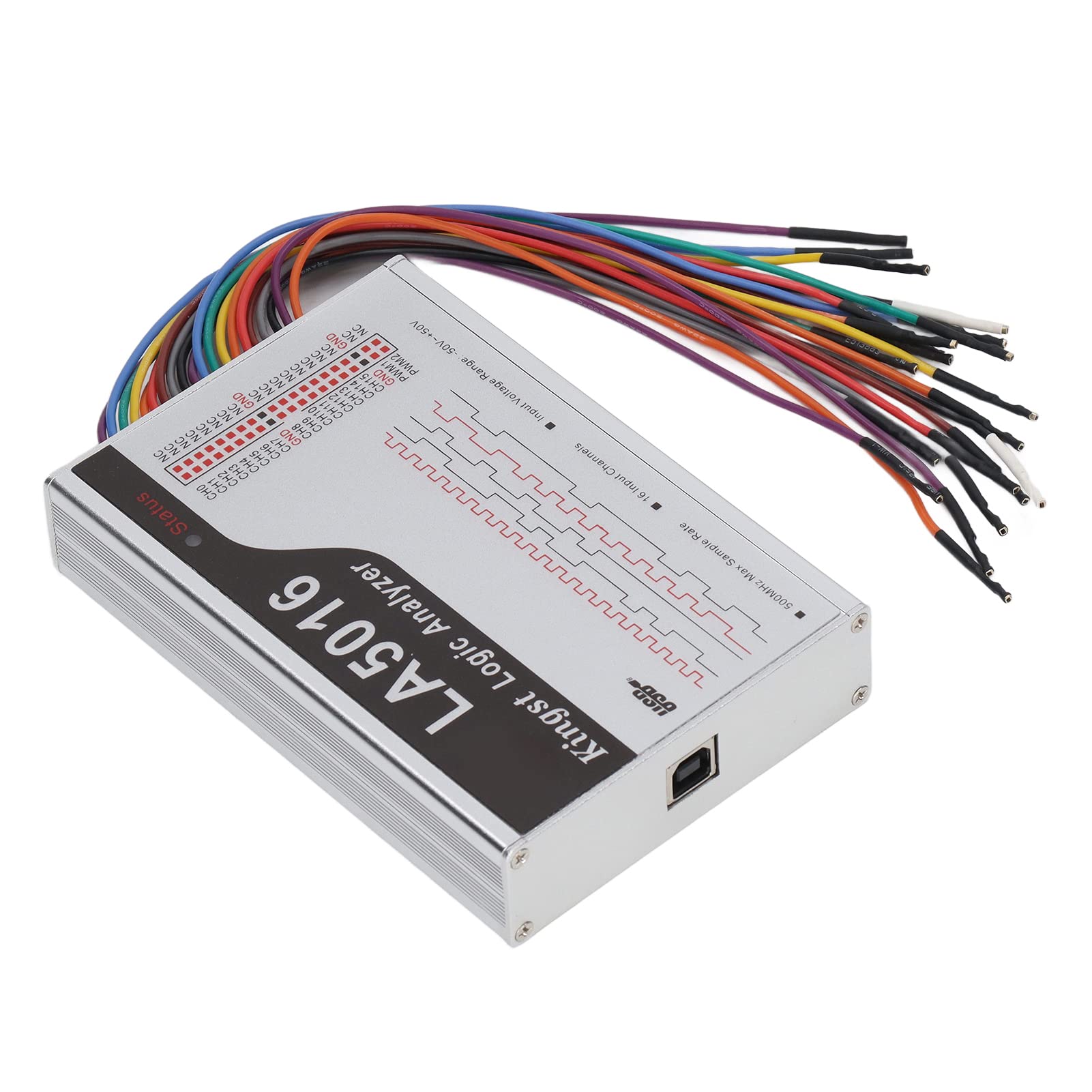

Specification: Item Type: Logic Analyzer Item Model Number: LA5016 Number of Channels: 16 Channels Supported Modes: Normal Mode (the data is collected and then transmitted to the computer, the sampling rate is higher), Streaming Mode (the collected data is transmitted to the computer at the same time, the sampling time is longer) Maximum Sample Rate: Normal Mode: 500M (16 channels) Streaming Mode: 100M (3 channels) 50M (6 channels) 20M (16 channels) Highest Acquisition Signal Frequency: 80MHz Minimum Collectable Pulse Width: 6.25ns Built in Hardware Memory Capacity: 2Gbits Maximum Hardware Storage Depth (Ensure Achievable Sampling Depth): 100M Maximum Compression Sampling Depth (Achievable Sampling Depth Not Guaranteed): 10G (lossless compression sampling mode, which can effectively improve the depth when collecting lower frequency signals) Streaming Mode Maximum Sampling Depth: 100G (the actual depth may be limited by the memory capacity of the computer, and each level transition of each channel needs to occupy 5Bytes of memory) Input Voltage Range: -50V-50V Equivalent Input Impedance: 200K?, 15pf Threshold Voltage Adjustment Range: -4-4V, Adjustment Step: 0.01V Interface Type: USB2.0 Standby Current: 200mA Maximum Operating Current: 400mA Package List: 1 x Logic Analyzer 1 x 9P Line 1 x 2P Line 18 x Test Hook 1 x USB Cable 1 x User Manual Note: Match the appropriate model threshold range before use.

Acogedor8n6dso4zkw555

WEB30347695

7.7 inches

2.2 inches

1.1 pounds

10.2 inches

Brand New
