LAPOND

Good Condition

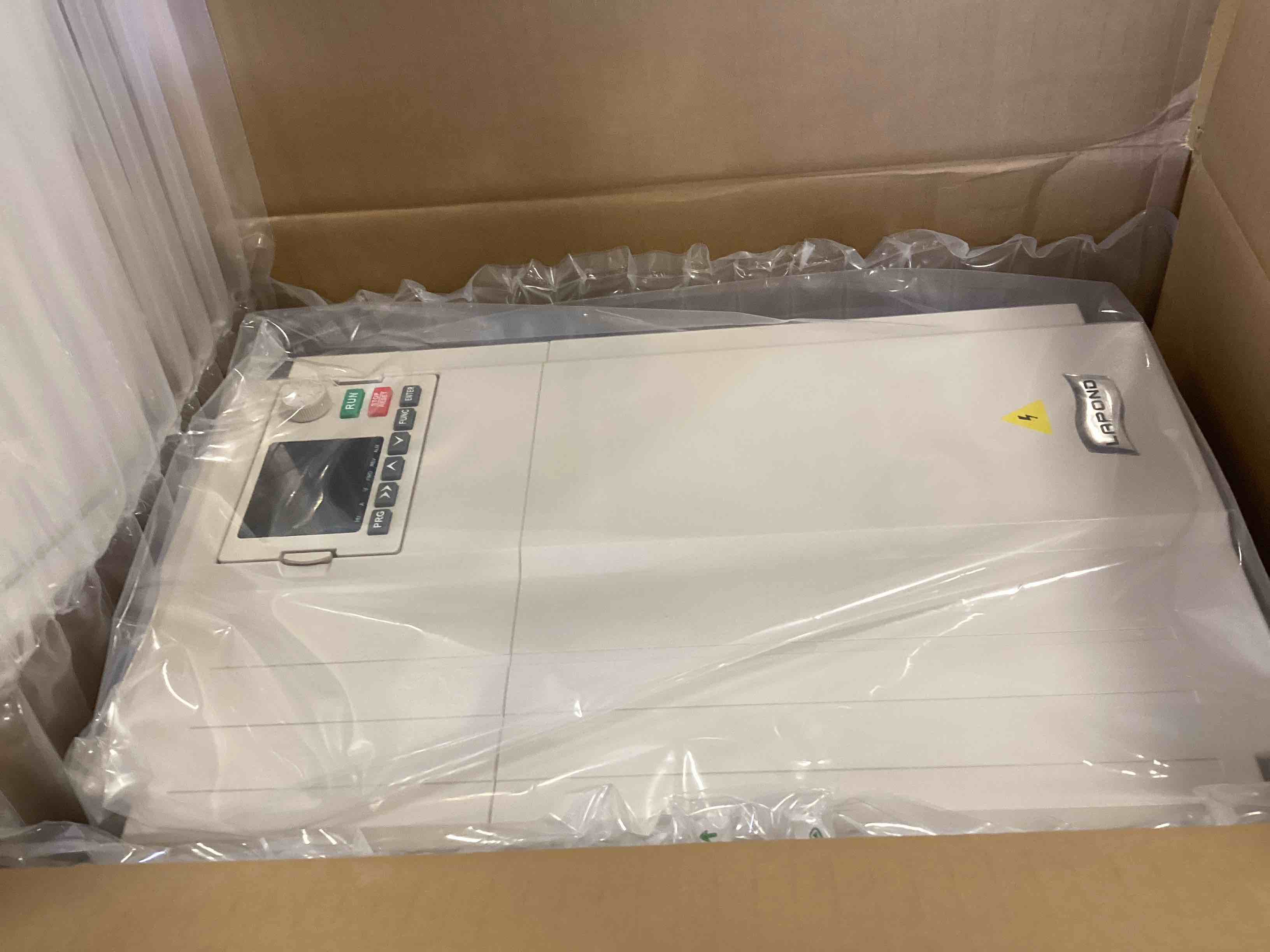

Attention 1.This VFD is ONLY applicable to three phase asynchronous motor. 2.If your motor is heavy load, pls choose a higher horsepower vfd than your motor's. 3.The instantaneous starting current of the air compressor is very large,to avoid overcurrent, please choose the motor twice the horsepower of the vfd, for example: 2hp compressor, recommend choose 4hp or 5hp VFD. 4.One of key function of the VFD is to start the motor softly, to avoid huge electric current impact to mains system and mechanical shock occur to machine system ,we strongly recommend NOT to Turn on the Motor after VFD start up. LAPOND 220V 32A 7.5KW 10HP VFD Inverter Specifications Model: K100-7R5G1 Power: 7.5KW(10HP) Input: 1PH AC 220VAC(+/-15%) 50/60HZ Output: 3PH AC 0-220V 32A 0-400HZ 7.5KW Applicable motor power: Three-phase 220V motor (?10HP) Dimension:12.6(L)x 8(W)x 7.87(H)inches Package include: 1x VFD drive;1x Manual High Performance Use of IGBT modules with high stability and low failure rate,say goodbye to single tube machines. Cooling fan With the copper coil of good quality,this Vfd drive is safer and more durable.And this vfd adopts the multi-grid design with enough cooling space between the electronic components and the case, so it is easier to cool quickly. Widely Application CNC router, CNC router, milling machine, drilling machine, wingding machine, mixer, extruder, compressor, ventilator, pump, grinder and other speed control machines Advanced Features 1.Independent control panel and detachable for remote control. 2.Support 5V or 10V PWM control frequency,external braking resistor,potentiometer,MODUS function. 3.high capacitance with low output torque 0.5HZ-150% and low speed operation. 4.Superior anti-interference performance.

ORG6168701

10.3 inches

10.1 inches

14.2 pounds

14.6 inches

Good Condition

304 South Church Street, Cynthiana KY 41031

5
