STOCK IMAGE
Auction Ended

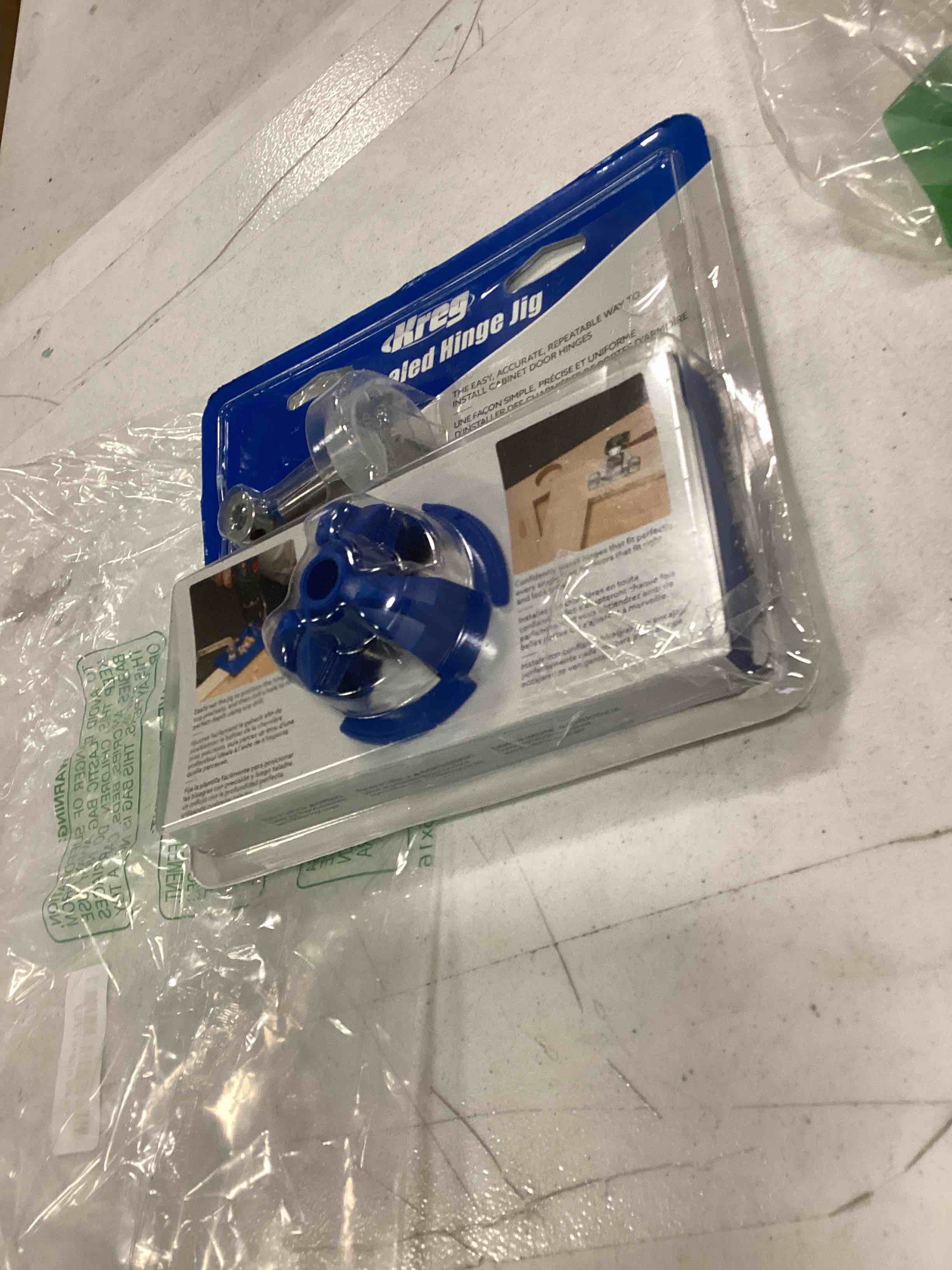

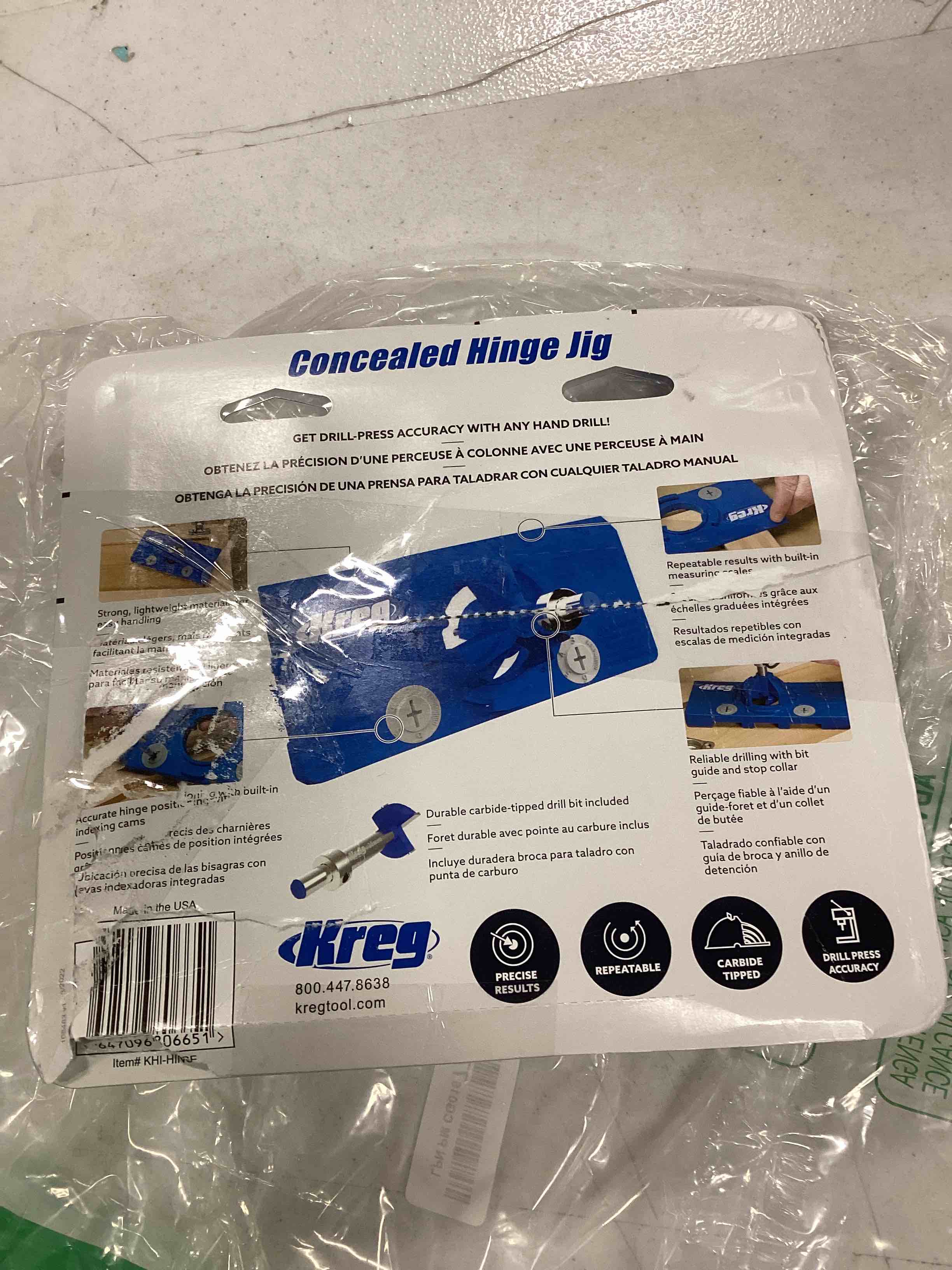

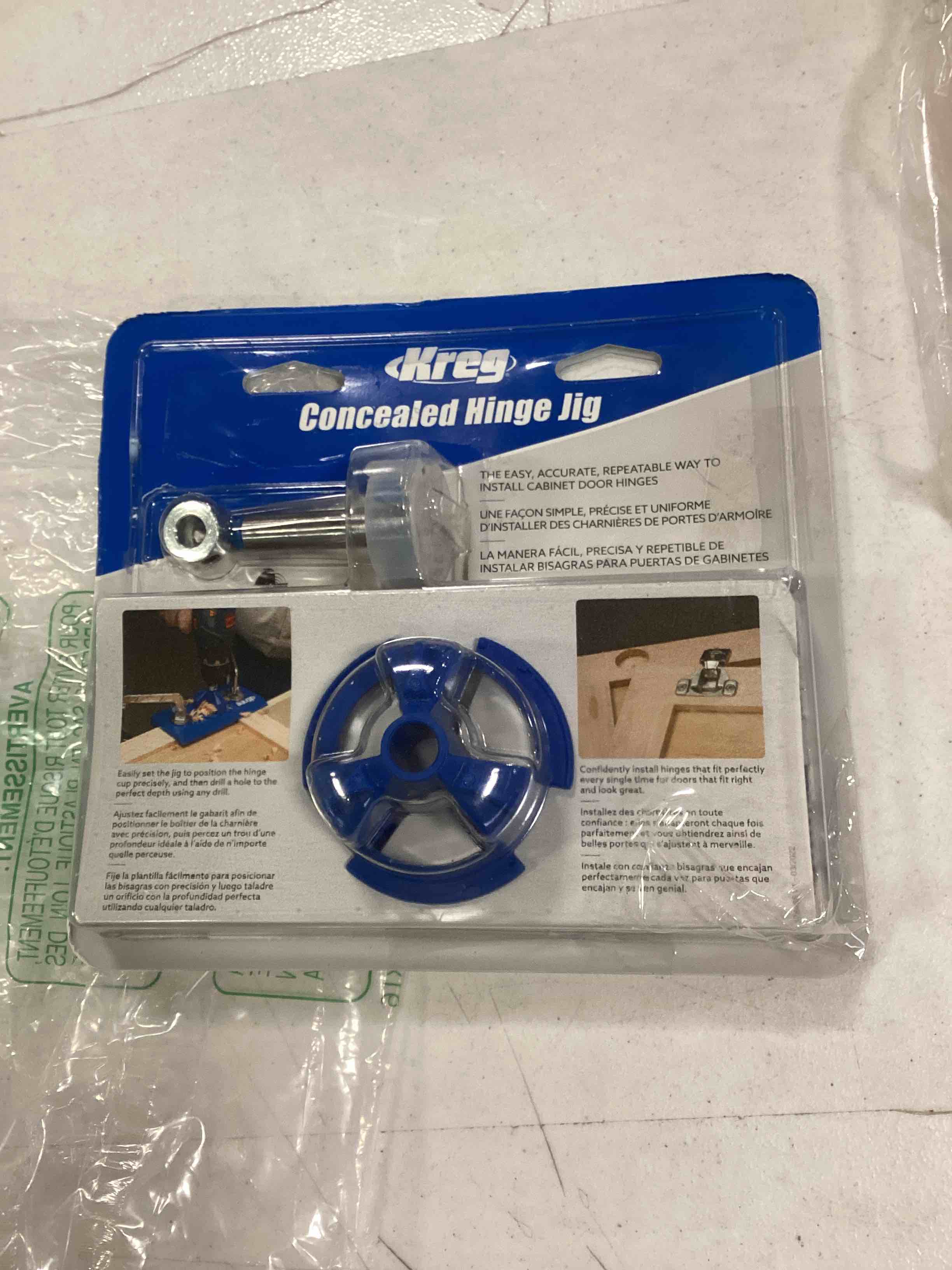

Concealed Hinge Jig
Sold
As Is
QTY 1
$1.55
Last Update:
01/09/2026, 9:20 PM ESTItem Information
MSRP:
MSRP is a sample online retail price.
$0.00
Brand:
Kreg
Condition:
As Is
Description:
The Concealed Hinge Jig takes the guesswork out of installing cabinet doors using concealed hinges. The Concealed Hinge Jig allows you to drill cup holes for concealed cabinet door hinges (sometimes called Euro hinges) using just a drill. The jig positions an included carbide-tipped bit exactly at the proper position and offset and drills to the perfect depth every time thanks to adept stop collar. The Kreg Concealed Hinge Jig takes the guesswork out of drilling those holes and allows you to do it with nothing more than a drill and the carbide-tipped bit that comes with the jig. Note: A 1/16 in. bit is required to drill for hinge-mounting screws. Not included. The Concealed Hinge Jig consists of a glass-filled nylon base with a hole that receives a drill guide. Indexing cams ensure that the jig positions the bit to drill a hole at the required offset which is dictated by each hinge and a built-in stop collar ensures that the cup depth is correct every time. There are even holes that you can use to guide a bit for hinge screw holes. The Concealed Hinge Jig comes with a high-quality, carbide tipped bit to ensure great results. Just pick out your hinges, look up a few basic mounting instructions that come with them and then set up the Concealed Hinge Jig by adjusting a pair of built-in cams. After that, you are set to drill hinge cup holes using any ordinary drill.
Model:
KHI-HINGE
Lot Code:
GRN5678268
Additional Info:
As Is
Pickup Location:
41855 North Ridge Road, Elyria OH 44035
Auction Number
ELR2400398
