TOOLIOM

Appears New

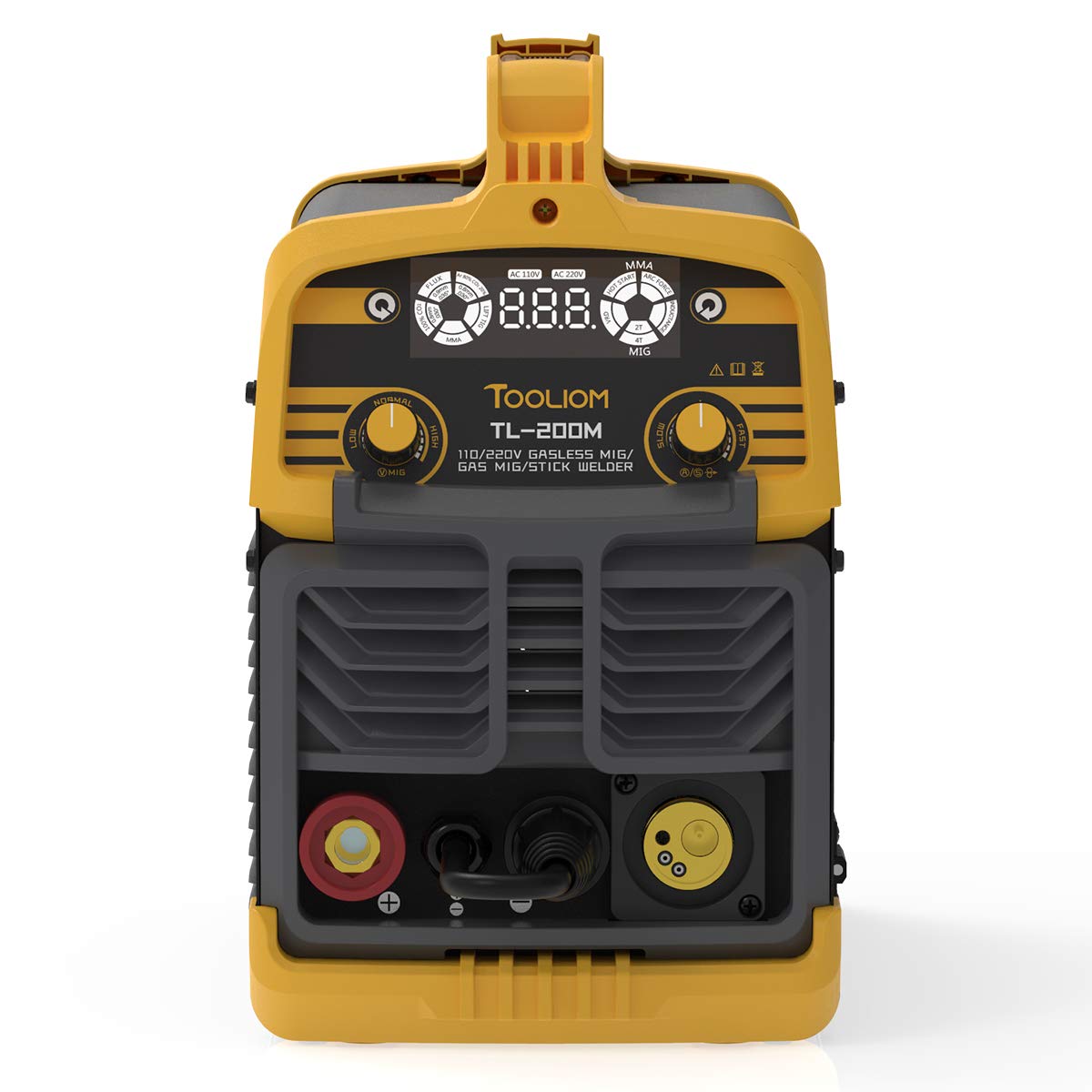

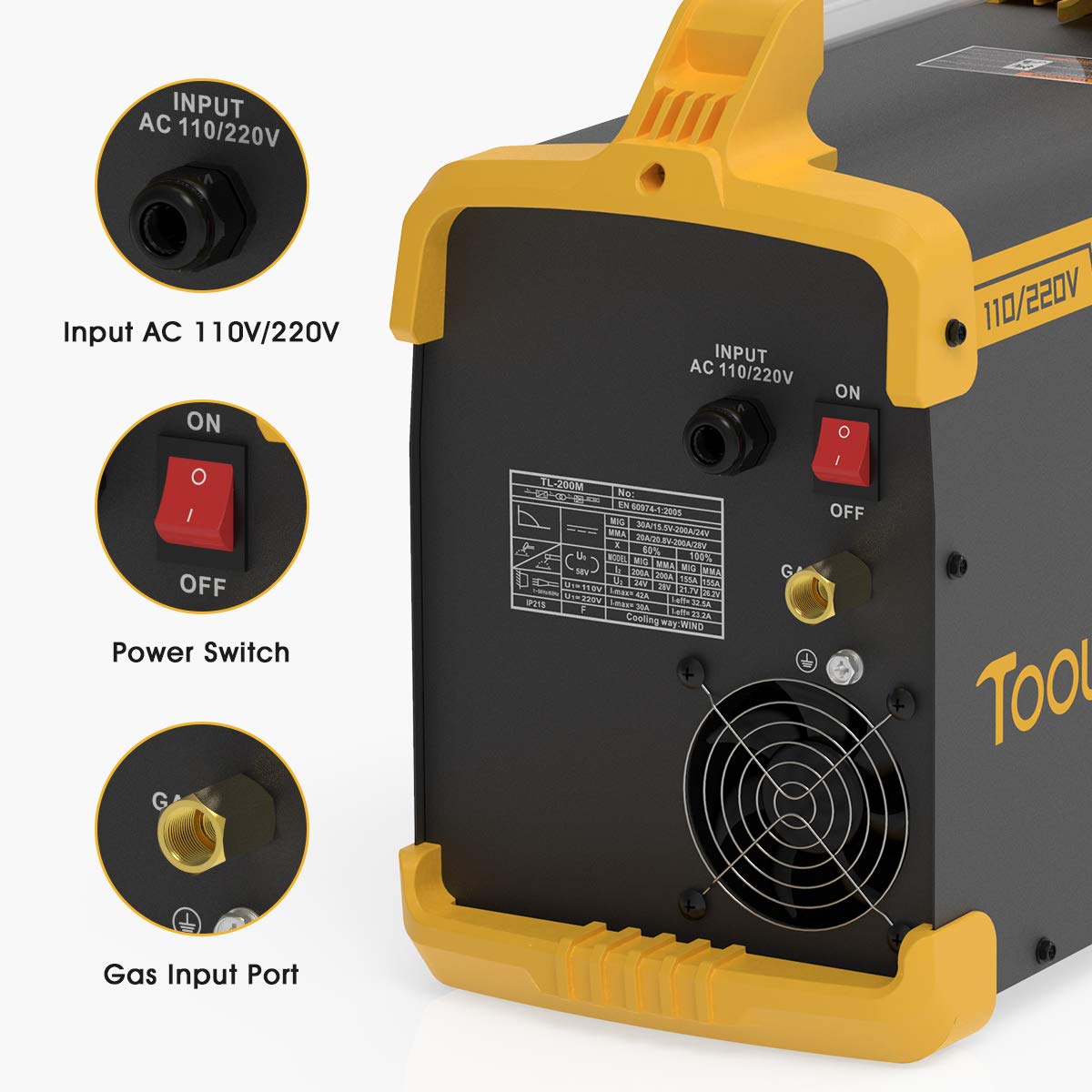

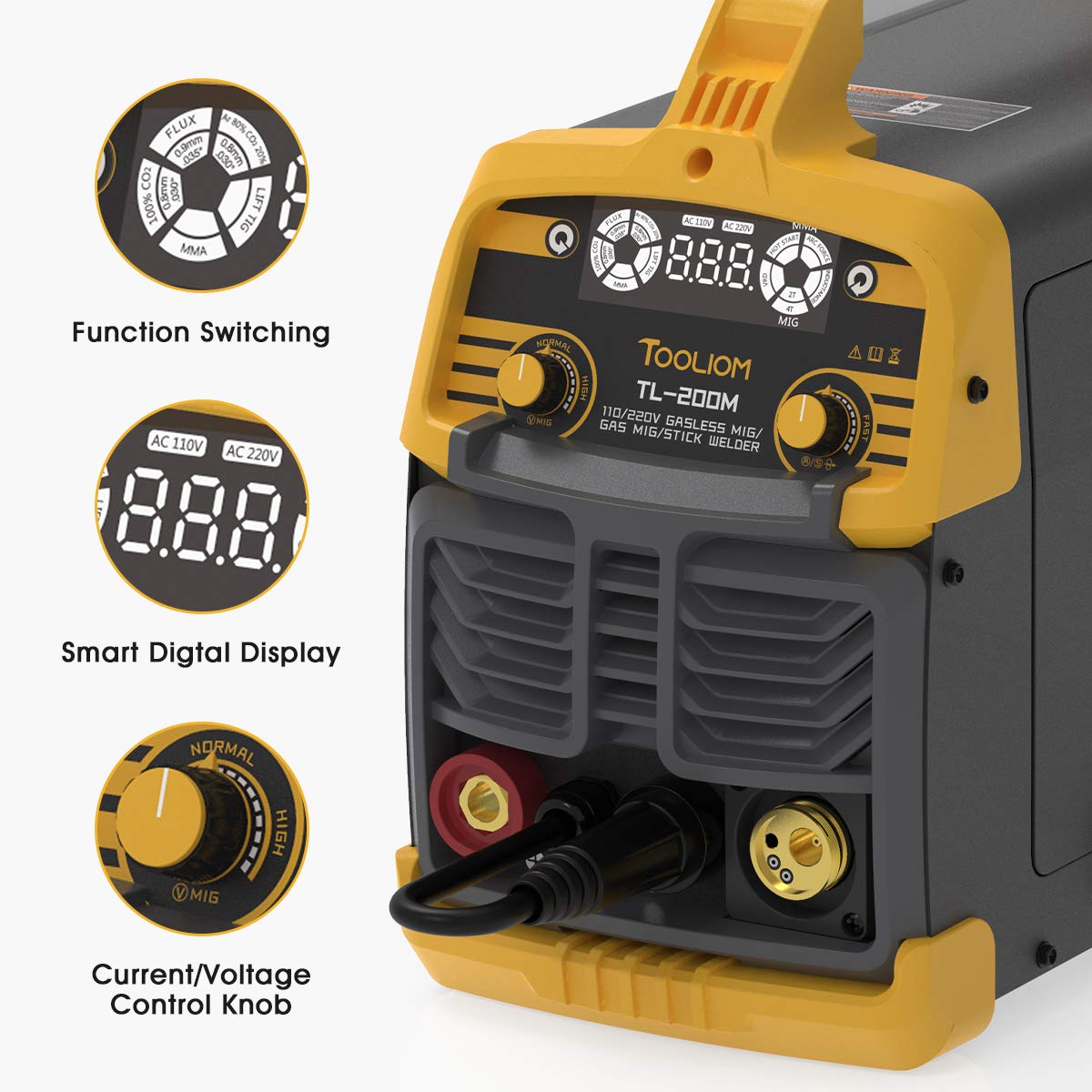

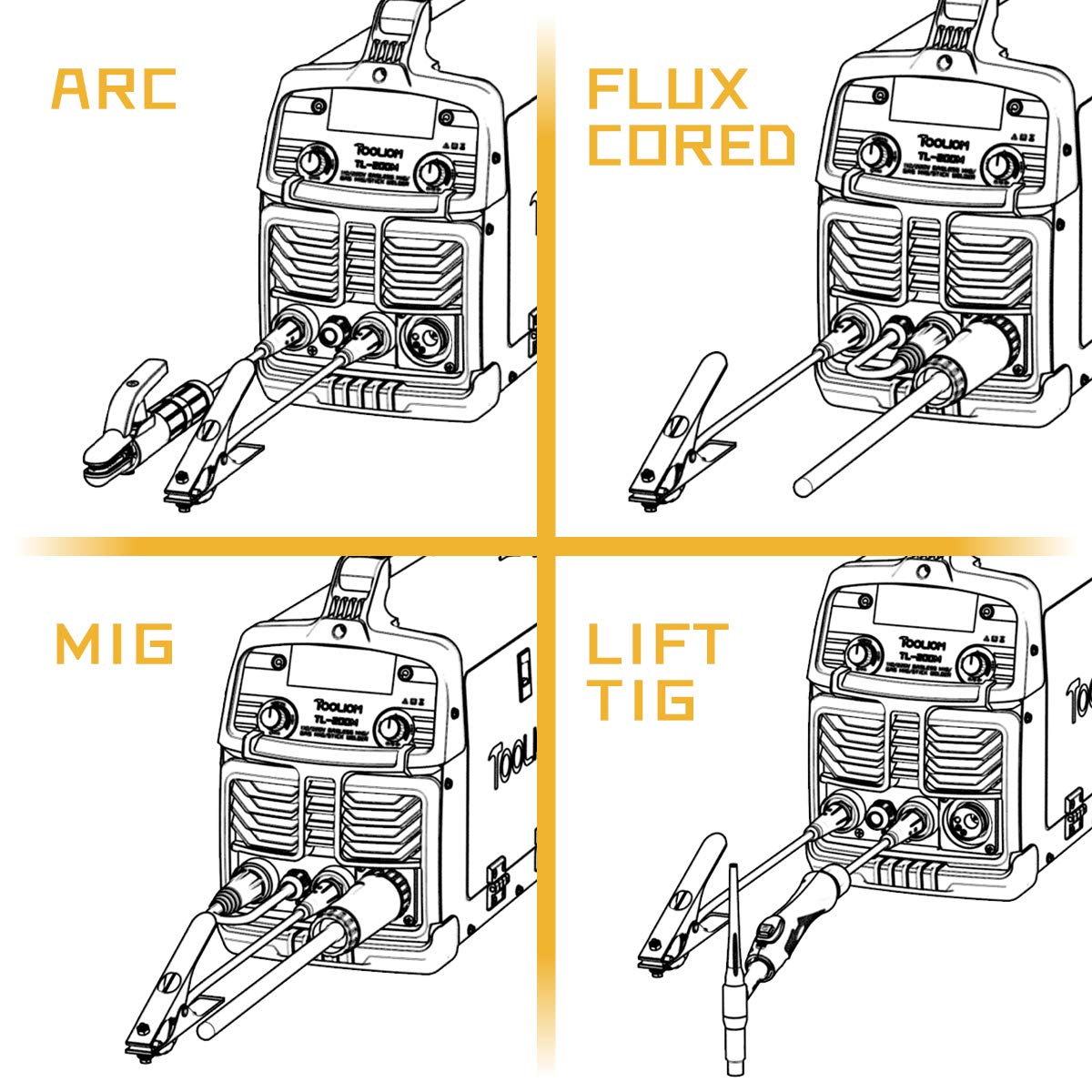

Product Specifications: Input Voltage: 110(120)V / 220(230)V Input Current: 32.5A(110V) / 23.2A(220V) Duty Cycle: 60%(200A) 100%(155A) Insulation Class: F Output Voltage: 24V Output Current:200A Protection Class: IP21S Lift tig is optional(need buy extra tig lift torch,not included inside product) TOOLIOM 200A MIG Welding Machine Features&Advantages Synergic Adjustment Function(Software Control): Easy and simple to operate."One button"selection design:Choose the right welding method according to different welding requirements.Voltage can micro adjust (-1.5V to +1.5V,value not displayed)5 Functions in 1:Multi-functions in one machine,suitable for MMA,Lift Tig,Flux Mig,Gas Mig,suitable for mild steel works.2T/4T Operation:2T is suitable for spot welding and simple work.4T is suitable for continuous long-term welding and releases fingers. Lift TIG is optional(need buy extra tig lift torch,not included inside product) Read more Equipped with heavy duty cooling fan to help heat dissipation.Inner comes with automatic thermal overload protection.Powered by standard 110(120)V household current,using adapter can be connected to 220(230)V circuit. 2T/4T OperationReady to feed .030" and .035" diameter welding wire. Apply to D100/D200 (4" diameter /8" diameter) rolls of MIG wire.Weld up to .030"(0.8mm) with solid core wire,and .035" (0.9mm)with flux core wire.Built in heavy duty metal wire feeder Read more The voltage value can be micro adjust, but the value is not displayed.When the knob is adjusted to the middle gear, the current and voltage values have been matched(Intelligent integration, suitable for beginner).If spatter and welding effect is not satisfactory, you can fine tune the voltage. Can weld mild steel up to 5/32 inch (4.0mm) plate.Can handle up to .030"(0.8mm) with solid core wire,and .035" (0.9mm)with flux core wire.Can Handle E7018 electrode. Size Net Weight is 20.5LB/ 9.3KG.Comes with a modern aluminum handle grip, making it easy for you to carry anywhere you want. Package Included MIG WelderAdapter CordShielding Gas Hose 9.8'Ground Clamp with 10'(3M) CableMIG Torch with 10'(3M) Cable.[.030/0.8mm contact tip installed]Electrode Holder with 10'(3M) CableWire BrushW Knurl Groove(FCAW-GS) Read more Welding Polarity Flux-Cored Locate the Ground Clamp with Cable and connect the plug on the cable end to the Positive Connector (+) on the Welder. MIG Locate the Ground Clamp with Cable and connect the plug on the cable end to the Negative Connector (–) on the Welder. Lift TIG Locate the Ground Clamp with Cable and connect the plug on the cable end to the Positive Connector (+) on the Welder.Lift tig is optional(need buy extra tig lift torch,not included inside product) ARC Locate the Ground Clamp with Cable and connect the plug on the cable end to the Negative Connector (–) on the Welder. Read more TL-135S TL-195S TL-135M TL-200M TL-200T TL-50C Function ARC/Lift TIG ARC/Lift TIG Flux MIG/ARC/LIFT TIG Flux MIG/MIG/ARC/LIFT TIG TIG/ARC Plasma Cut Current 135A 195A 135A 200A 200A 50A Voltage 110/220V Dual Voltage 110/220V Dual Voltage 110V Voltage 110/220V Dual Voltage 110/220V Dual Voltage 110/220V Dual Voltage Duty Cycle 60% 60% 60% 60% 60% 60%

TL-200M

YLW2995509

15.6 inches

12.6 inches

31.9 pounds

20.5 inches

Appears New

2809 Howard Litzler Dr, Covington KY 41015
